Connecting the HV-P60A to the SK-301 stand.
HV-P30A
■ Max. Input Voltage: 30 kV DC, 40 kV pulse
■ Attenuation ratio: 1000:1
■ Low input capacitance: <7pF
■ High input impedance
■ System bandwidth: 50 MHz
HV-P60A
■ Max. Input Voltage: 60 kV DC, 80 kV pulse
■ Attenuation ratio: 2000:1
■ Low input capacitance: <7pF
■ High input impedance
■ System bandwidth: 50 MHz
Models & Specifications
The IWATSU® HV-P Series comes in two versions:
| Article number | Attn. | B/W | Input Impedance | Compensation Range | Cable Length | Max. Input Voltage | |||
|---|---|---|---|---|---|---|---|---|---|
|
HV-P60A | 2500:1 | 50 MHz | 1000 MΩ || <7 pF | 20-50 pF | 4 m | 60 kV DC / 80 kV pulse | ||
|
HV-P30A | 1000:1 | 50 MHz | 100 MΩ || <7 pF | 15-50 pF | 3 m | 30 kV DC / 40 kV pulse | ||
IWATSU® HV-P Options
There are several options and accessories available for the IWATSU® HV-P series.
| Order number | Article | |||
|---|---|---|---|---|
|
|
SK-301 | IWATSU® High Voltage Probe Accessory: Probe Stand | |
|
|
KAL-DAKKS-HVP30A | IWATSU® HV-P30A (re-)calibration according to ISO 17025, DC calibration with multimeter. | |
|
|
KAL-HVP60A | IWATSU® HV-P60A factory recalibration, DC calibration with multimeter | |
(Re-)calibration certificates for the IWATSU® HV-P series
Our (Re-)calibration certificates for the IWATSU® HV-P series can be ordered with a new probe or for an existing one as a re-calibration certificate.
| Order number | Article | |||
|---|---|---|---|---|
|
|
KAL-HVP30A | IWATSU® HV-P30A factory recalibration DC calibration with multimeter | |
|
|
|
KAL-DAKKS-HVP30A | IWATSU® HV-P30A (re-)calibration according to ISO 17025, DC calibration with multimeter. | |
|
|
|
KAL-HVP60A | IWATSU® HV-P60A factory recalibration, DC calibration with multimeter | |
|
|
KAL-DAKKS-HVP60A | IWATSU® HV-P60A (re-)calibration according to ISO 17025, DC calibration with multimeter | |
Probe stand connectivity

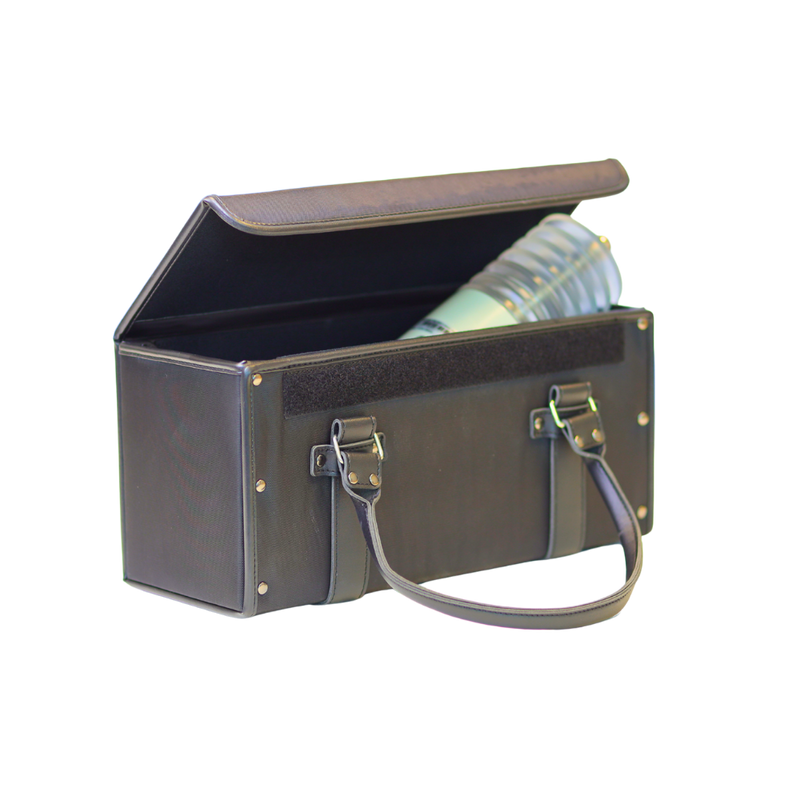

HV-P60A in transport box (HV-P60A scope of delivery)

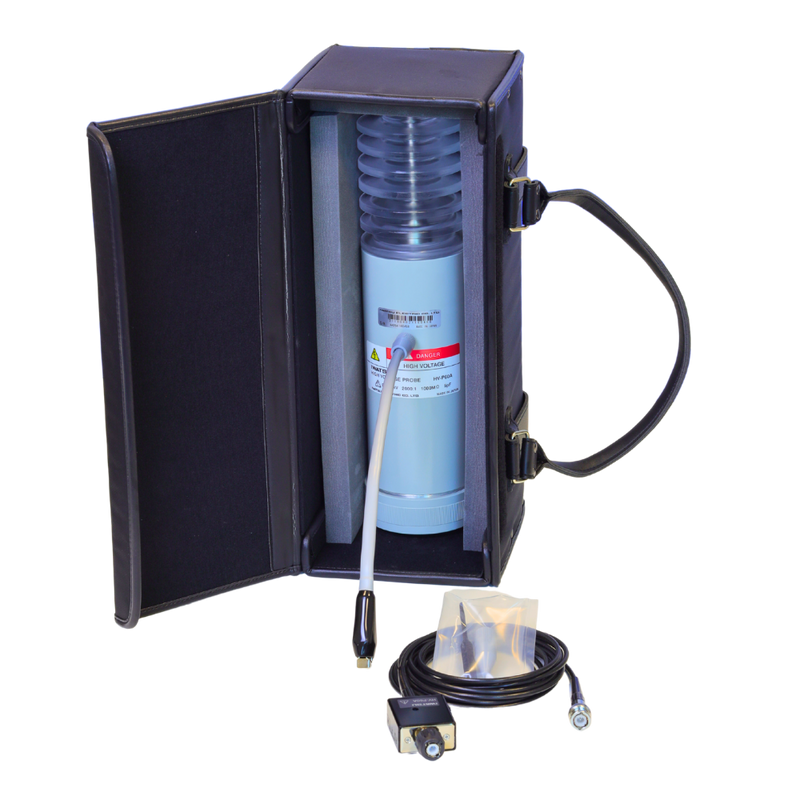

HV-P60A scope of delivery

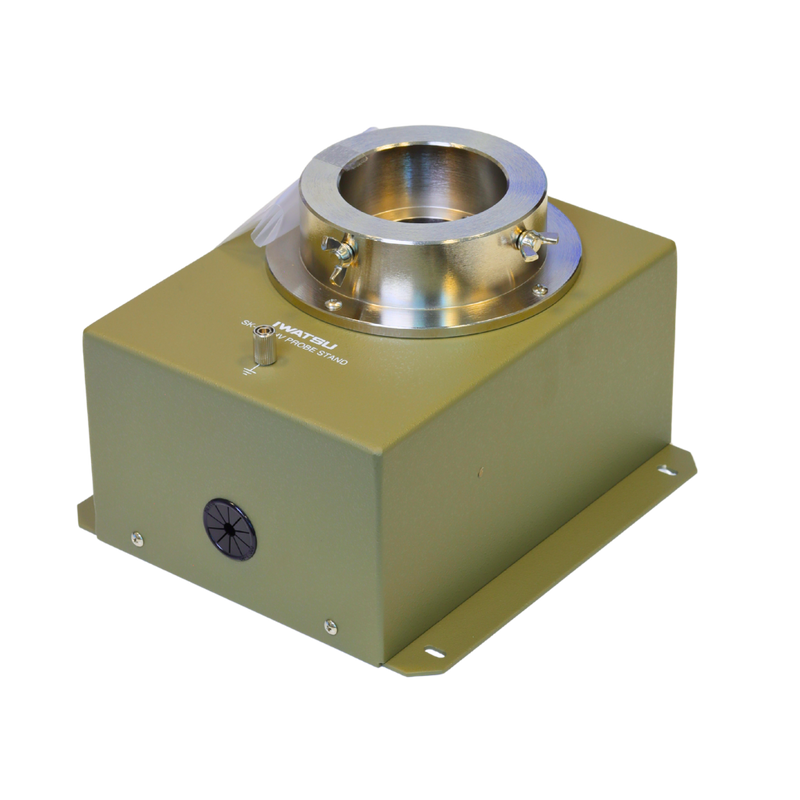

SK-301 stand. Suitable for HV-P30A and HV-P60A

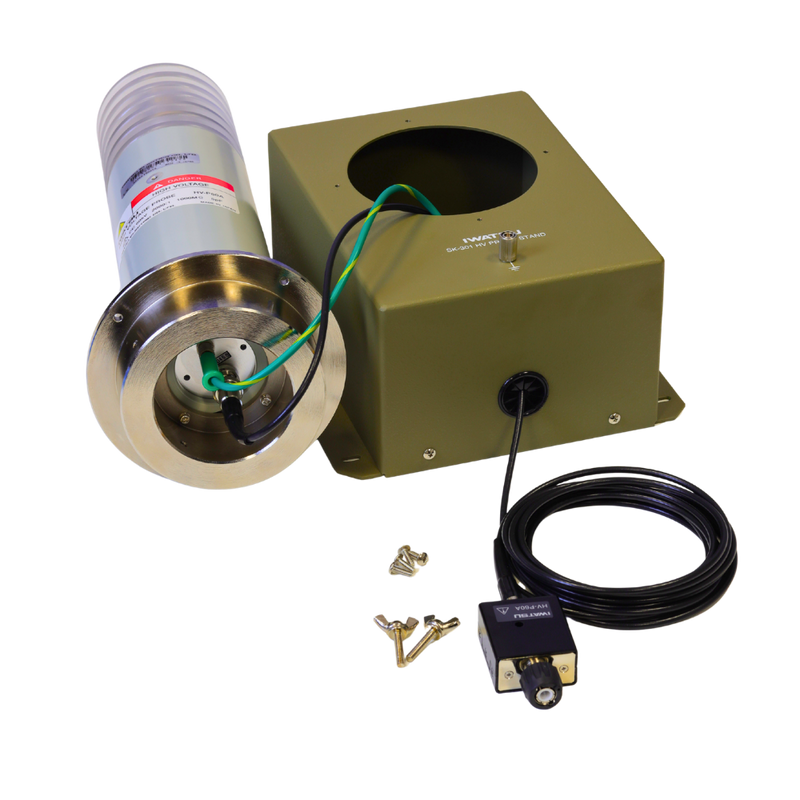

Green SK-301 ground cable connected to HV-P60A ground. HV-P60A output cable led through SK-301 stand.

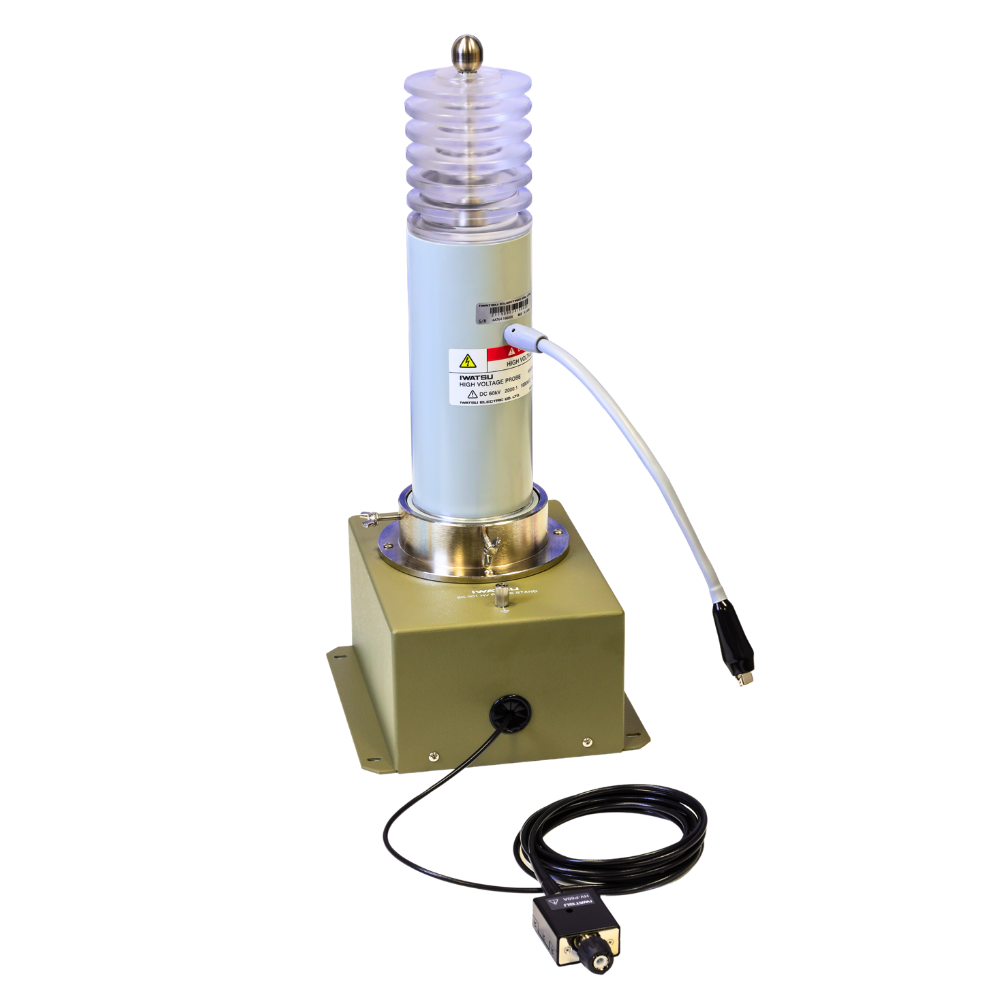

HV-P60A fully connected and fixed to SK-301 stand.
