IWATSU® Semiconductor Curve Tracer
■ Precision instruments for analyzing semiconductor devices
■ Supports a wide range of components (transistors, diodes, power devices)
■ High-voltage and high-current sourcing capabilities
■ Includes pulse measurement and low-current analysis features
■ Ideal for device characterization, failure analysis, and quality assurance
■ Suitable for R&D labs, production lines, and educational use
■ Reliable performance tailored for modern semiconductor testing
Example: measuring an IGBT
Our IWATSU® Curve Tracer Models
IWATSU Curve Tracer Lineup
Explore representative configurations of IWATSU curve tracers — including CS-8000 series setups and complete CS-3000 / CS-5000 systems. The specifications below provide a simplified overview for quick comparison. For detailed specifications, manuals, and data sheets, please refer to the individual product pages.
| Article number | High-Voltage Mode | High-Current Mode | Min. Current Resolution | ||
|---|---|---|---|---|---|
|
CS-8500-220-322 |
5000 V
(8 mA)
|
2000 A
(50 V)
|
250 fA | |
|
CS-8500-210-322 |
5000 V
(8 mA)
|
1000 A
(50 V)
|
250 fA | |
|
CS-8500-205-322 |
5000 V
(8 mA)
|
500 A
(50 V)
|
250 fA | |
|
CS-8200-220-322 |
2000 V
(20 mA)
|
2000 A
(50 V)
|
250 fA | |
|
CS-8200-210-322 |
2000 V
(20 mA)
|
1000 A
(50 V)
|
250 fA | |
|
CS-8200-205-322 |
2000 V
(20 mA)
|
500 A
(50 V)
|
250 fA | |
|
CS-8020-220-322 |
200 V
(1 A)
|
2000 A
(50 V)
|
250 fA | |
|
CS-8020-210-322 |
200 V
(1 A)
|
1000 A
(50 V)
|
250 fA | |
|
CS-8020-205-322 |
200 V
(1 A)
|
500 A
(50 V)
|
250 fA | |
|
CS-5400 |
5000 V
(25mA at 5kV ... 7.5A at 30V)
|
1500 A
(30V)
|
1 pA (leakage mode) | |
|
CS-5300 |
5000 V
(25mA at 5kV … 7.5A at 30V)
|
1000 A
(40V)
|
1 pA (leakage mode) | |
|
CS-5200 |
5000 V
(25mA at 5kV ... 7.5A at 30V)
|
400 A
(40V)
|
1 pA (leakage mode) | |
|
CS-5100 |
5000 V
(25mA at 5kV ... 7.5A at 30V)
|
Not equipped
(-)
|
1 pA (leakage mode) | |
|

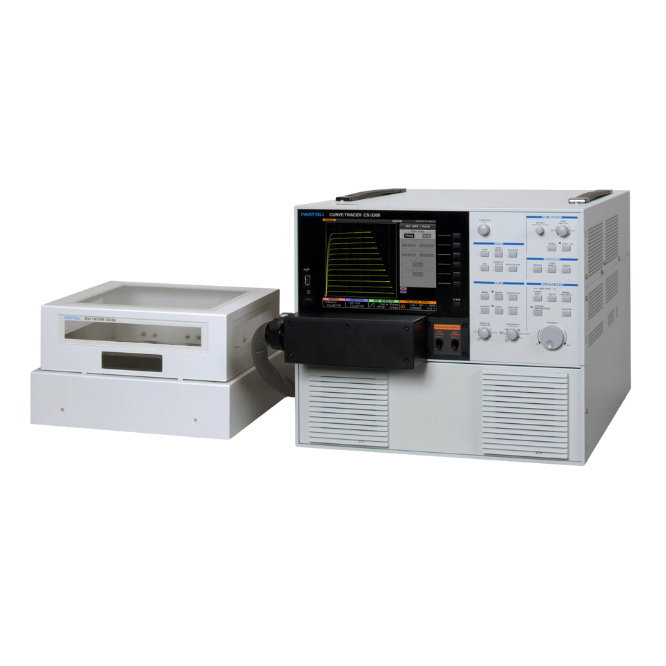

CS-3300 |
3000 V
(25mA at 5kV ... 7.5A at 30V)
|
1000 A
(40V)
|
1 pA (leakage mode) | |
|
CS-3200 |
3000 V
(25mA at 5kV ... 7.5A at 30V)
|
400 A
(40V)
|
1 pA (leakage mode) | |
|
CS-3100 |
3000 V
(25mA at 5kV ... 7.5A at 30V)
|
Not equipped
(-)
|
1 pA (leakage mode) | |
■ Maximum peak voltage 3,000V (high voltage mode)
■ Maximum peak current 1,000A (CS-3300 high current mode)
■ All models equipped with LEAKAGE mode (1pA cursor resolution)
■ USB port to save screen data and setup data
■ Equipped with LAN interface for remote control
CS-5000 Series
■ Maximum peak voltage 5,000V (high voltage mode)
■ Maximum peak current 1,500A (CS-5400 high current mode)
■ All models equipped with LEAKAGE mode (1pA cursor resolution)
■ USB port to save screen data and setup data
■ Equipped with LAN interface for remote control
CS-8000 Series
■ Up to 5kV, 2kA High-Power Test
■ Very small current measurement (Resolution 250fA）
■ Large 12.1-inch Touch Screen
■ Variety of GATE Signal Output
■ Enhanced Temperature Characteristic Measurement Option
■ On-Wafer High-Power Testing with Wafer-Prober
BETA: Find by Voltage & Current
Considering CS-3000 and CS-5000 series curve tracer only. Enter required max voltage (V) and max current (A). We’ll also show key differences.
