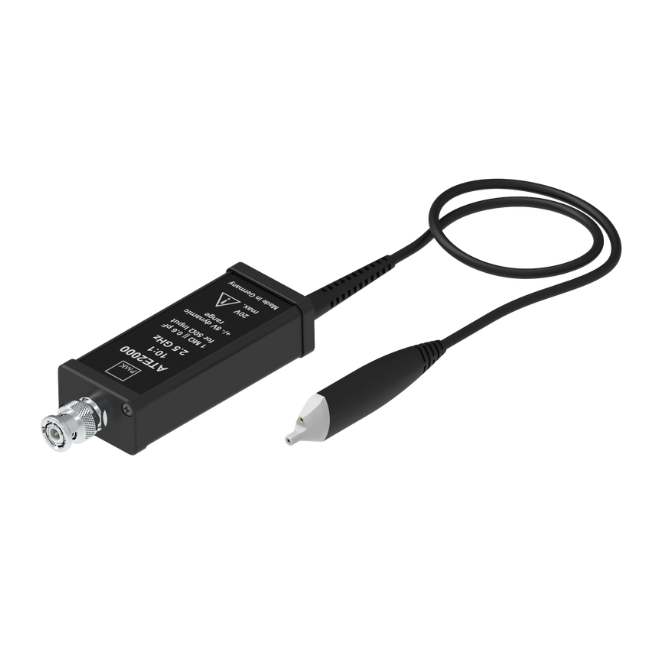

ATE2000 active probe for Automated Test Equipment, 2.5GHz, ±8V, 1MΩ, 10:1, single ended, 6m

Active Probe for Automated Test Equipment - ATE2000

■ For use in automated 3D positioning systems

■ Up to 2.5 GHz bandwidth, 2MΩ||0.6pF

■ ±8V (16 Vpp) input voltage range

■ Measure test points with up to 50mm apart

■ High-impedance probe tip reference connection for safe in-circuit testing of energized circuits without the possibility for shorting directly to earth ground

■ 6m cable length for remote probing

■ Universal BNC connector - use with any oscilloscope

The ATE2000 active probe, with up to 2.5GHz bandwidth and 6m long cable length, enables its use in the dynamic in-circuit measurements in the automated test equipment (ATE) environment. ATE2000 is specifically designed for use in automated 3D positioning systems, e.g. flying probers or other XYZ positioning systems. The flexible reference connection lead accessories ensure high bandwidth, >1GHz, repeatable measurements between test points that are up to 50mm apart while maintaining the best signal fidelity. The wide dynamic input voltage range of ±8V, up to 2.5GHz bandwidth and high 2MΩ||0.6pF input impedance, makes the ATE2000 a versatile probing solution for various applications, like automated failure analysis and trouble-shooting in service centers of electronic devices, or testing of safety-related electronics e.g. in autonomous fly and drive applications. The probe’s universal BNC interface is compatible with oscilloscopes with 50Ω input impedance. The ATE2000’s long 6m cable provides the ability to probe remote, hard to reach points.

Unlike other single-ended probes the ATE2000 is equipped with a high impedance 1MΩ probe tip reference connection, which enables safe in-circuit testing of an energized circuit without the possibility for shorting the probe tip reference connection directly to earth ground and therewith damaging the circuit under test.

ATE2000’s offset can be controlled via remote control. The "PMK Probe Control” software provides the ability for the user to control the probe remotely via a computer, and provides the user with a graphical user interface. The software is free of charge, and included with PMK’s 2ch and 4ch power supplies PS-02 and PS-03, which are required to power the probe. The power supplies all have a USB interface and are available with optional LAN interface. The new 1 channel battery pack power supply AP-01 provides > 8h of portable and isolated operation which allows the user the flexibility of where the probe can be used. The AP-01 supplies power only to the probe with no software remote control.

Download „PMK Probe Control“ here

In addition, the Python package "Pmk-probes" is available as a programming interface for controlling active PMK probes. Installation instructions, examples and documentation can be found here:

https://pmk-probes.readthedocs.io/en/latest/

ISO17025 calibration upon delivery or as re-calibration is available.

The required ground/reference accessory and power supply are not included. Please review the selection of power supplies below. If you need any non-published accessories, please contact sales@pmkamerica.com

Models & Specifications

		Order number	Article	Attn.	B/W	Input Voltage	Input Offset	Input Impedance
$28.00 USD Qty available: 0		890-400-812	Ground blade		>2.5 GHz
$1,093.00 USD Lead time 8-10 weeks		ATE-FLXGND30	30mm flexible GND reference lead		>1.6GHz
$1,524.00 USD Lead time 8-10 weeks		ATE-FLXGND50	50mm flexible GND reference lead		>1.1GHz
$8,625.00 USD Lead time 8-10 weeks	Datasheet	ATE2000	2.5 GHz active Probe, ±8V, 6m cable length	10:1	depends on accessory	±20V	±12V	2 MΩ \|\| 0.6 pF

Power Supplies for the ATE2000

Not included in the ATE2000 probe's scope of delivery. A power supply is needed to operate the ATE2000 probe head.

		Order number	Article	Input Voltage	Output Current (max.)	Noise	Channels	Power
$1,573.00 USD Lead time 8-10 weeks	Datasheet Manual	889-09V-AP01	1ch Battery pack, >8hrs operation, no remote control		700 mA DC		1	20 W
$277.00 USD Lead time 8-10 weeks		890-520-915	Probe connection cable 1.6 m
$1,186.00 USD Qty available: 1	Datasheet	889-09V-PS2	2ch Power supply for remote control with USB interface	100-240 V AC, 47-63 Hz	550 mA / channel	8 mV	2	20 W
$1,573.00 USD Lead time 8-10 weeks	Datasheet	889-09V-PS3	4ch Power supply for remote control with USB interface	100-240 V AC, 47-63 Hz	550 mA / channel	4 mV	4	40 W
$2,127.00 USD Qty available: 1	Datasheet	889-09V-PS3-L	4ch Power supply for remote control with USB and LAN interface	100-240 V AC, 47-63 Hz	550 mA / channel	4 mV	4	40 W
$1,739.00 USD Lead time 8-10 weeks	Datasheet	889-09V-PS2-L	2ch Power supply for remote control with USB and LAN interface	100-240 V AC, 47-63 Hz	550 mA / channel	8 mV	2	20 W
