Semiconductor Curve Tracer CS-3000 Series
■ Maximum peak voltage 3,000V (high voltage mode)
■ Maximum peak current 1,000A (CS-3300 high current mode)
■ All models equipped with LEAKAGE mode (1pA cursor resolution)
■ USB port to save screen data and setup data
■ Equipped with LAN interface for remote control

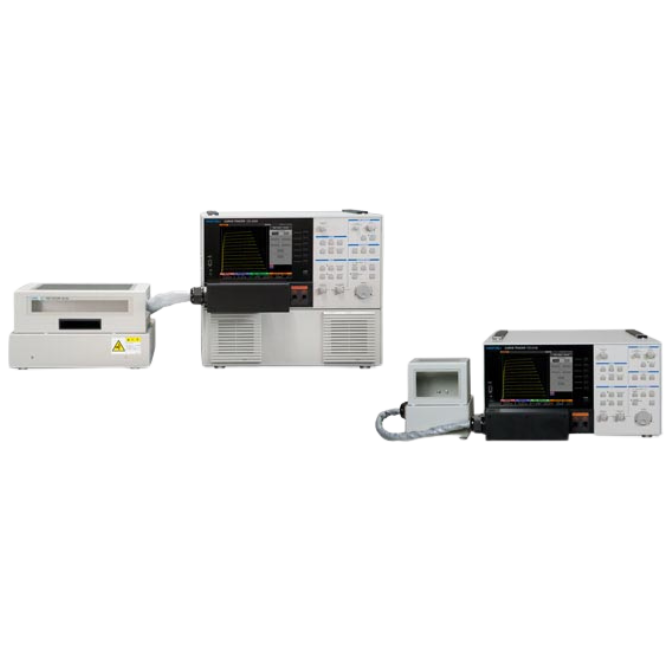

CS-3000 Main Frame: Models and Specifications
There are three models of the Semiconductor Curve Tracer Main Frames in the CS-3000 Series—CS-3100, CS-3200, and CS-3300. The CS-3100 does not support High Current (HC) Mode, whereas the CS-3200 and CS-3300 do, offering up to 400A and 1,000A peak pulse current respectively.
All models share a set of advanced standard features, including:
- Max. Peak Voltage of 3,000V (High Voltage Mode)
- LEAKAGE Mode with ultra-fine 1pA cursor resolution
- Multiple waveform options: Rectified SINE, DC ±, LEAKAGE ±, and AC
- LAN interface for remote control and USB port for saving screen/setup data
These features make the CS-3000 Series ideal for testing IGBTs, MOSFETs, transistors, and diodes with high precision and flexibility.
Reach out to sales@pmkamerica.com for optimal configuration.
| Article number | Max. Peak Voltage | HC Mode Peak Current | HC Mode Peak Voltage | HC Mode Power | Pulse Width (μs) | |||
|---|---|---|---|---|---|---|---|---|
|
CS-3300 | 3kV | 1000 A | 40V | 10kW | 50 – 400 (10μs resolution) | ||
|
CS-3200 | 3kV | 400 A | 40V | 4kW | 50 – 400 (10μs resolution) | ||
|
CS-3100 | 3kV | Not equipped | - | - | - | ||
BETA: Find by Voltage & Current
Considering CS-3000 and CS-5000 series curve tracer only. Enter required max voltage (V) and max current (A). We’ll also show key differences.

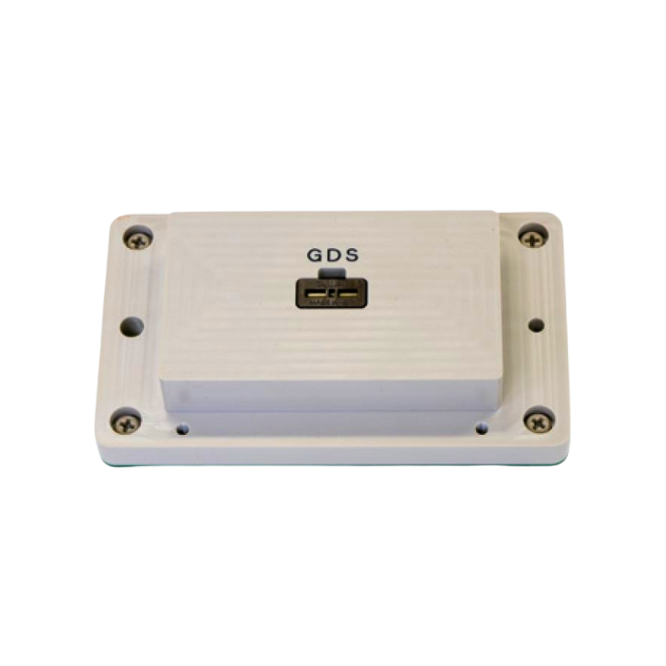

Semiconductor Curve Tracer CS-3000 Series
13 products
