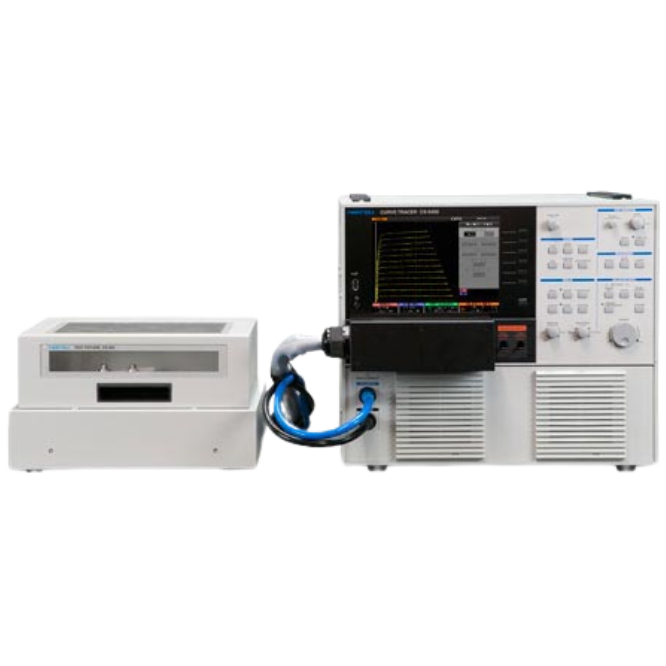

Semiconductor Curve Tracer CS-5000 Series
■ Maximum peak voltage 5,000V (high voltage mode)
■ Maximum peak current 1,500A (CS-5400 high current mode)
■ All models equipped with LEAKAGE mode (1pA cursor resolution)
■ USB port to save screen data and setup data
■ Equipped with LAN interface for remote control
CS-5000 Main Frame: Models and Specifications
There are four models of the Semiconductor Curve Tracer Main Frames in the CS-5000 Series—CS-5100, CS-5200, CS-5300, and CS-5400. The CS-5100 does not support High Current (HC) Mode, whereas the CS-5200 - CS-5400 do, offering up to 12kW and 1,500A peak pulse current.
All models share a set of advanced standard features, including:
- Max. Peak Voltage of 5,000V (High Voltage Mode)
- LEAKAGE Mode with ultra-fine 1pA cursor resolution
- Multiple waveform options: Rectified SINE, DC ±, LEAKAGE ±, and AC
- LAN interface for remote control and USB port for saving screen/setup data
These features make the CS-5000 Series ideal for testing IGBTs, MOSFETs, transistors, and diodes with high precision and flexibility.
Reach out to sales@pmkamerica.com for optimal configuration.
| Article number | Max. Peak Voltage | HC Mode Peak Current | HC Mode Peak Voltage | HC Mode Power | Pulse Width (μs) | |||
|---|---|---|---|---|---|---|---|---|
|
CS-5400 | 5kV | 1500 A | 30V | 12kW | variable between 50μs and 400μs (Resolution :10μs) | ||
|
CS-5300 | 5kV | 1000 A | 40V | 10kW | variable between 50μs and 400μs (Resolution :10μs) | ||
|
CS-5200 | 5kV | 400 A | 40V | 4kW | variable between 50μs and 400μs (Resolution :10μs) | ||
|
CS-5100 | 5kV | Not equipped | - | - | - | ||
Find by Voltage & Current
Considering CS-3000 and CS-5000 series curve tracer only. Enter required max voltage (V) and max current (A). We’ll also show key differences.
Semiconductor Curve Tracer CS-5000 Series
20 products
