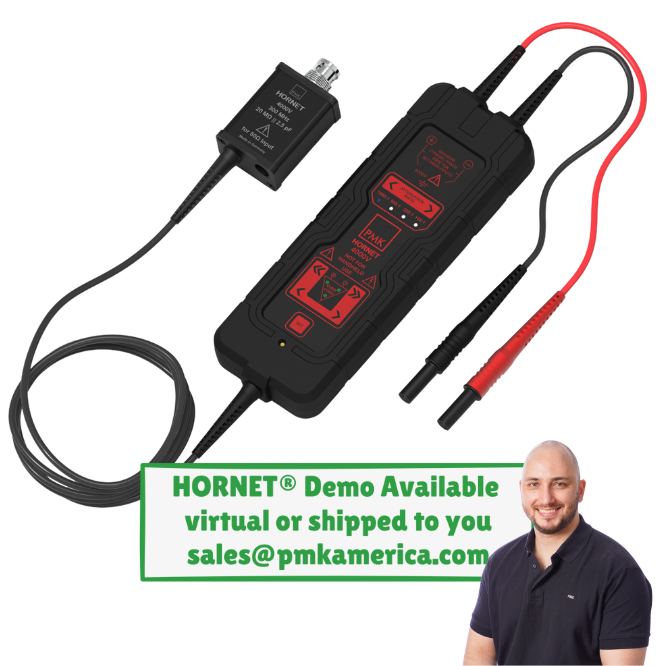

HORNET® ±4000V high voltage differential probe
$7,418.00 USD
U.S. stock — Qty: 1
Demo available
High Voltage Differential Probe Series HORNET®
■ Ideal for switching power supplies, IGBTs, Si / SiC power devices
■ ±4000V Input voltage
■ Each with four user selectable input attenuator ranges
■ >300MHz bandwidth
■ High CMRR
■ For tester applications
The state-of-the-art high voltage differential probe series HORNET® combines a ±4000V differential and common mode voltage input range with a remarkable >300MHz bandwidth, establishing itself as the best-in-class solution for the growing demands of wide bandgap power electronics design, e.g. double pulse testing of high-speed high-voltage switching devices of SiC technology, and testing of IGBTs, thyristors, fast-switching HV diodes, and more.
The HORNET® series probes have a universal BNC output connector and is compatible with any oscilloscope in the lab with 50Ω input impedance, or 1MΩ input impedance and a 50Ω feed-through termination.
Various accessories are available for the adaptation to test points, such as the test point to 4mm adapter series with MMCX, SMA, BNC or pin header inputs, which ensure the full probe bandwidth.
This high voltage differential probe series is not for handheld use and for integration into full-automated or manual test stations for high-voltage safety reasons. HORNET® is therefore used as a voltage-measuring component (permanently attached device) in a test system or safety test environment with recommendation to be controlled remotely.
A PMK power supply unit is required. These are available with a USB interface and are optionally available with a LAN interface. Remote control of the probe is made possible by the power supply unit.
The exact range of functions of the probes is described on the page linked below for the respective software solution.
Several software solutions are available for remote control of PMK products:
http://www.pmk.de/en/remotecontrol
ISO17025 calibration upon delivery or as re-calibration is available.
Models & Specifications for the HORNET® Series
Please consult the HORNET® Datasheet for the full scope of delivery.
| Order number | Article | Attn. | B/W | Input Voltage | Input Impedance | Rise time | |||
|---|---|---|---|---|---|---|---|---|---|
|
$7,418.00 USD
Demo available |
|
HORNET4kV | HORNET® ±4000V, 2m | 1000:1 | >300 MHz | 4000V peak | 20 MΩ || 2.5 pF | 1.0 ns | |
Holder and Positioner for the HORNET® Series
Not included in the scope of delivery of the HORNET® Series. Please consult the HORNET® Datasheet for the full scope of delivery.
| Order number | Article | Base | Arm Length | Probe Holder | |||
|---|---|---|---|---|---|---|---|
|
$913.10 USD
|
|
893-350-015 | BumbleBee® and HORNET® series probe holder | 1200 g Steel Base | 200 mm | BumbleBee® and HORNET® | |
|
$992.45 USD
|
|
893-350-014 | Twin holder for BumbleBee® and HORNET® series probe holder | 1200 g Steel Base | 200 mm | 130 mm | BumbleBee® and HORNET® | twin holder | |
|
$139.15 USD
|
|
893-350-013 | Spare part - BumbleBee® and HORNET® series probe holder | - | - | BumbleBee® and HORNET® | |
|
$785.45 USD
|
|
893-350-010 | BumbleBee® 3D positioner with spring-loaded clamp holder | 1200 g Steel Base | 200mm | spring-loaded clamp | |
Power Supplies for the HORNET® Series (order separately)
Not included in the HORNET® probe head's scope of delivery. A power supply is needed to operate the HORNET® 4000 probe head. Please consult the HORNET® Datasheet for the full scope of delivery.
| Order number | Article | Input Voltage | Output Current (max.) | Noise | Channels | Power | |||
|---|---|---|---|---|---|---|---|---|---|
|
$1,186.00 USD
|
|
889-09V-PS2 | 2ch Power supply for remote control with USB interface | 100-240 V AC, 47-63 Hz | 550 mA / channel | 8 mV | 2 | 20 W | |
|
889-09V-PS2-L | 2ch Power supply for remote control with USB and LAN interface | 100-240 V AC, 47-63 Hz | 550 mA / channel | 8 mV | 2 | 20 W | ||
|
$1,573.00 USD
|
|
889-09V-PS3 | 4ch Power supply for remote control with USB interface | 100-240 V AC, 47-63 Hz | 550 mA / channel | 4 mV | 4 | 40 W | |
|
$2,127.00 USD
|
|
889-09V-PS3-L | 4ch Power supply for remote control with USB and LAN interface | 100-240 V AC, 47-63 Hz | 550 mA / channel | 4 mV | 4 | 40 W | |
|
$277.00 USD
|
|
|
890-520-915 | Probe connection cable 1.6 m | |||||
Optional Adapters for the HORNET® Series
Not included in the scope of delivery of the HORNET® Series. Please consult the HORNET® Datasheet for the full scope of delivery.
| Order number | Article | Input Voltage | Input Connector | |||
|---|---|---|---|---|---|---|
|
$380.00 USD
|
|
4mm-BNC-M | 4mm-BNC-M | 750V DC + AC pk, 1500V pulse | BNC (male) | |
|
$380.00 USD
|
|
4mm-WSQ-5.08 | 4mm-WSQ-5.08* | 750V DC + AC pk, 1500V pulse | 5.08mm pitch holes, (-) (+) (-) | |
|
4mm-BNC-F | 4mm-BNC-F | 750V DC + AC pk, 1500V pulse | BNC (female) | ||
|
4mm-SMA-F | 4mm-SMA-F | 500V DC + AC pk, 1000V pulse | SMA (female) | ||
|
4mm-SMA-M | 4mm-SMA-M | 500V DC + AC pk, 1000V pulse | SMA (male) | ||
|
4mm-MMCX-F | 4mm-MMCX-F | 250V DC + AC pk, 500V pulse | MMCX (female) | ||
|
$449.00 USD
|
|
4mm-MMCX-M | 4mm-MMCX-M | 250V DC + AC pk, 500V pulse | MMCX (male) | |
Optional Accessories for the HORNET® Series
Not included in the scope of delivery of the HORNET® Series. Please consult the HORNET® Datasheet for the full scope of delivery.
| Order number | Article | |||
|---|---|---|---|---|
|
$242.00 USD
|
|
016-397-049 | Case for the BumbleBee® and HORNET® series, optional probe single case in black with foam inlay for transport and storage | |
Additional Accessories for Voltage Probes
Not included in the scope of delivery of the HORNET® Series. Please consult the HORNET® Datasheet for the full scope of delivery.
| Order number | Article | |||
|---|---|---|---|---|
|
$12.00 USD
|
|
|
890-880-117 | Short circuit adapter / coupler black 2x4mm |
|
$12.00 USD
|
|
|
890-880-116 | Short circuit adapter / coupler red 2x4mm |
|
$39.00 USD
|
|
|
890-880-115 | Set 2 clamps, hook, red/black |
|
$51.00 USD
|
|
|
890-880-114 | Set 2 clamps, jaws, red/black |
|
$31.00 USD
|
|
|
890-880-113 | Set 2 clamps, rotating grip jaw, red/black |
|
$75.00 USD
|
|
|
890-880-112 | Set 2 rail clip connectors, 4mm, red/black |
|
$28.00 USD
|
|
|
890-880-111 | Set 2 safety alligator clips, small, red/black |
|
$20.00 USD
|
|
|
890-880-110 | Set 2 spade terminals, 4.5mm fork opening, 30V AC / 60V DC, 36A max, 4mm socket, red/black |
|
$43.00 USD
|
|
|
890-880-109 | Set 2 magnet adapter, 4mm, red/black |
|
$24.00 USD
|
|
|
890-880-108 | Set 2 safety alligatorclips, big, red/black |
|
$21.00 USD
|
|
|
890-880-107 | Set 2 spade terminals, A.4,3/6,3, 4mm red/black |
|
$28.00 USD
|
|
|
890-880-106 | Set 2 spring tips, 4mm, red/black, |
|
$313.95 USD
|
|
890-880-104 | TWINHOLD | |
