■ Test frequency: 10Hz to 20kHz
■ Applicable magnetic field strength: 10,000A/m, max.
■ Sample dimensions: Single sheet samples at 36mm(L), min. / 35mm(W), max. and 3mm(t), max.
■ Introducing vertical single yoke current excitation type single sheet
magnetic property characteristics test method
■ Yoke compensation function cancelling loss and other affection in Yoke (patent pending)
■ Constant pressing force on specimen (selectable from 16 kinds of force settings)
| Measurement method |
vertical single yoke current excitation type single sheet magnetic property characteristics test method (IEC 60404-3 compatible)(Yoke compensation available) |
| Applicable magnetic field strength | Approx. 10,000A/m (Max.) with excitation level at 5A |
| Test frequency | Sinusoidal 10Hz to 20kHz |
| Sample dimension | 35mm(W), max., 36mm(L), min. 3mm(thickness), max. |
| Detection current | ±6A, max. |
| Detection voltage | ±200V, max. |
| Power | AC100V to AC240V, 50Hz/60Hz, Approx. 27VA (Max.) |
| Performance guarantee temperature | 18°C to 28°C |
| Dimension Weight |
330W×200H×320D(mm) Approx. 8.5kg |
| Accessories | Single sheet test system connection cable SY-957, B coil (2 kinds), Connection terminal screw, Pincer, Blowing brush, Accessory case, Power cable, Operation manual |
Building a toroidal core from flat magnetic material does not reveal the material’s true magnetic properties. Those properties are only captured accurately when the undeformed sheet itself is measured.
That has traditionally been difficult, because magnetic characterization usually requires a closed magnetic loop; for example, with an Epstein frame or another closed-loop core configuration.
IWATSU’s patented Single Sheet Tester solves this problem. It allows users to measure a small, flat sample directly, without first having to form a closed-loop core.
In practice, this makes testing much simpler: prepare one or more same-sized samples, place them into the IWATSU Single Sheet Tester, and evaluate the results directly. The system supports the included B coils for samples up to 1 mm thickness and either up to 10 mm width (B Coil 01) or up to 30 mm width (B Coil 02).
Key benefits

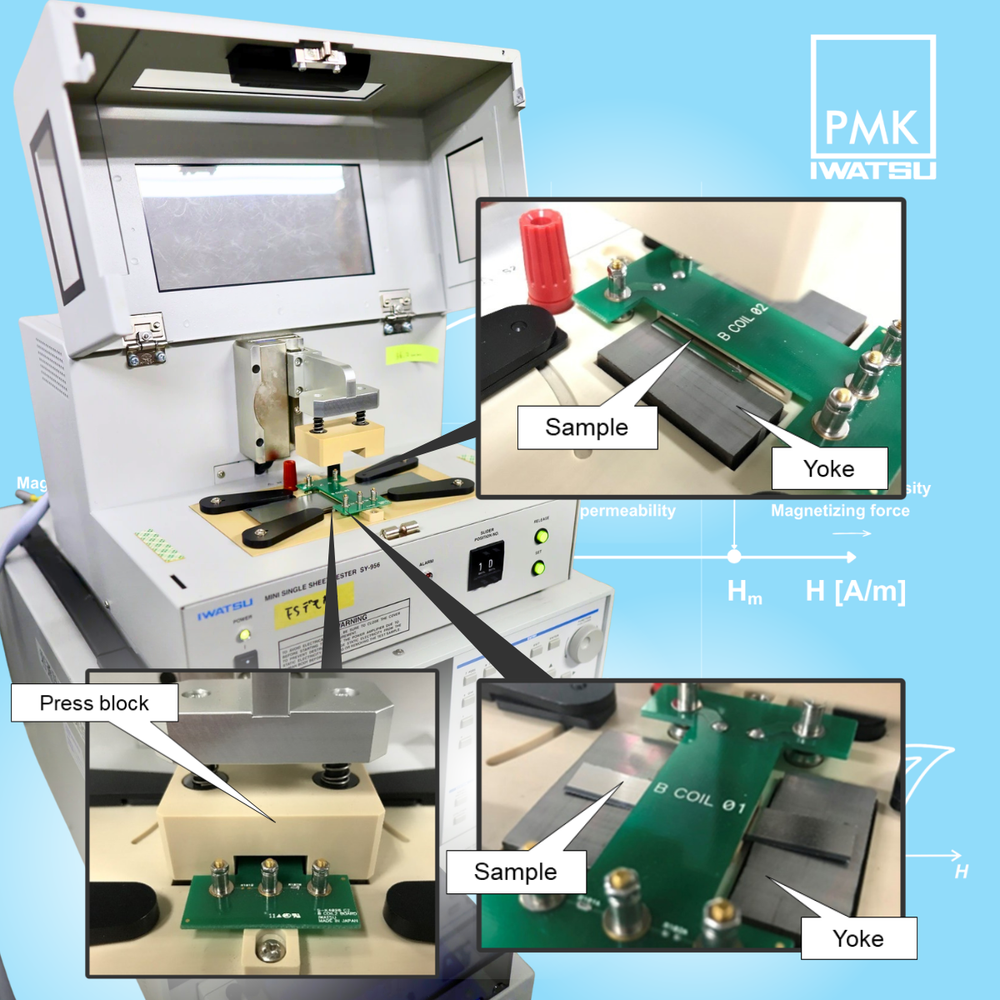

B coil 01 and B coil 02 sample configurations when mounted to the IWATSU Single Sheet Tester and the IWATSU B-H Analyzer
B coil 01:
Thickness：1mm, max.
Width：10mm, max.
Number of turns：35
B coil 02:
Thickness：1mm, max.
Width：30mm, max.
Number of turns：100
B coil 01
B coil 02
The IWATSU Single Sheet Tester helps reveal magnetic property changes that can arise purely from sample shape and processing, even when the base material is the same. This is why single-sheet testing before machining is so important: it allows engineers to evaluate the material in its original state and avoid overlooking shape-dependent performance differences.
The example shown for Permalloy demonstrates this clearly. While coercive force (Hc) remains similar between round and oval samples, Br, Bm, and core loss differ, showing that geometry can influence the final magnetic behavior. For material development, incoming inspection, and process optimization, the IWATSU Single Sheet Tester provides valuable insight before further manufacturing steps are taken.
Example of Permalloy
Hc: Round = Oval
Br: Round < Oval
Bm: Round < Oval
Core loss: Round < Oval
Example sheet configuration

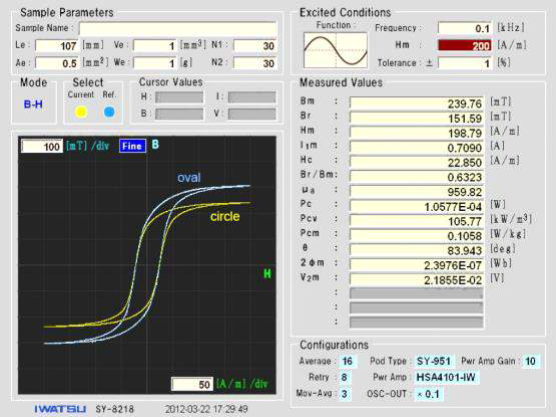

Example BH plots for oval and circle shapes.
| Order number | Article | |||
|---|---|---|---|---|
|
|
SY-509 | GBIP-USB converter for the IWATSU B-H Analyzer. Included in IWATSU Remote control PC software for SY-8218 and SY-8219 | |
|
|
SY-504 | 10kHz AC coupler for the IWATSU B-H Analyzer. Standard accessory of SY-8218 and SY-8219. | |
|
|
SY-514 | LF AC coupler for the IWATSU B-H Analyzer. AC coupler at fLc=300Hz(-3dB) to use in lower frequency than AC coupler SY-503 which provided as a standard accessory with BH analyzer mainframe. | |
|
|
SY-931 | B-H Analyzer DC Biasing Source | |
