■ Temperature range : -30℃to 150℃, Sample 41pcs, max.
■ Test freq.: 10Hz～5MHz (with SY-8218 mainframe), 10Hz～1MHz (with SY-8219 mainframe)
■ Input current: ±6A, max.
■ Input Voltage: ±200V, max.
■ Temp. range: －30℃to 150℃
This configuration enables seamless PC-based control of the IWATSU Temperature Scanner System SY-320A / SY-321A through the B-H Analyzer SY-8218 / SY-8219. Using the SY-810 remote control software, the system links the analyzer, scanner, and amplifier into one integrated measurement environment for efficient setup and operation.
A NI GPIB-USB-HS+ interface, together with the SY-509 USB-GPIB conversion adapter and 408JE-101 GPIB cable, provides the communication path between the PC and the scanner system. The SY-910 scanner connection cable and external power amplifier complete the hardware chain, allowing coordinated control of the full test setup.
Key benefits

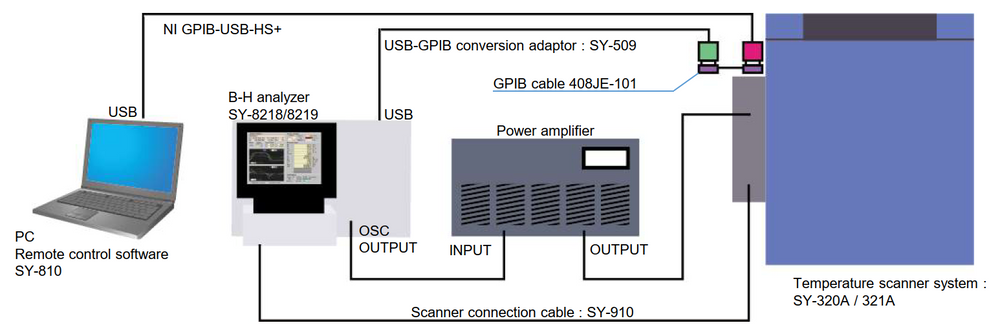

Remote Control Interface Example for the IWATSU Temperature Scanner System
Automatic measurement while changing the excitation conditions, such as the characteristics for the frequency.
* Please prepare your own PC.
* A separate NI GPIB-USB-HS+ manufactured by NATIONAL INSTRUMENTS is required to connect to the PC.
* Compatible B-H analyzer：SY-8218 / SY-8219

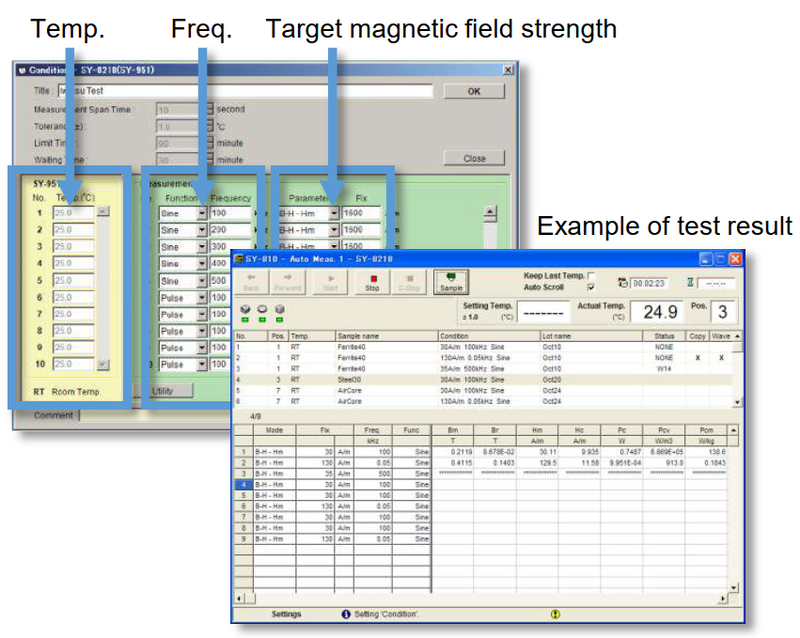

Screengrab of the Remote Control Software SY-810

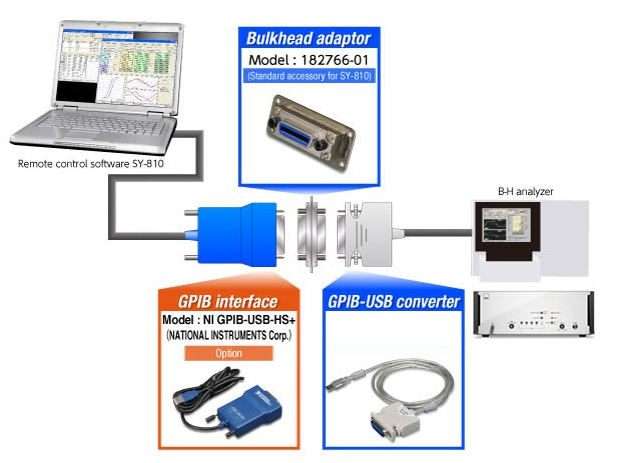

Connectivity example of the Remote Control Software SY-810
Observe the change over time of various measurement items while performing continuous measurements
* An option to add to the B-H analyzer (SY-8218/8219).
* If it is added after delivery, we will pick up the main unit and perform the work at our factory.

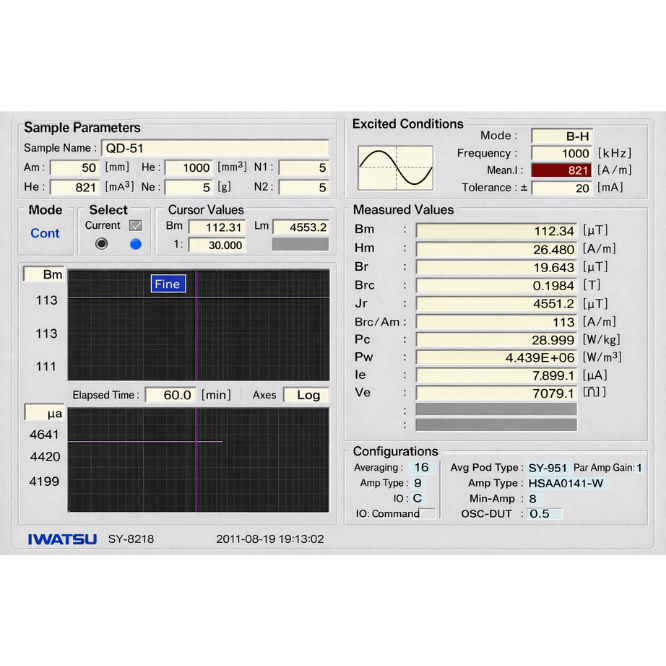

Screengrab of the SY-811 continuous measurement function
See the Temperature scanner system SY-320A / SY-321A instruction manual for information regarding scope of delivery.
| Order number | Article | |||
|---|---|---|---|---|
|
|
SY-811 | Optional continuous test function software for the IWATSU B-H Analyzer. Time-tendency property test can be performed at continuous excitation. | |
|
|
SY-810 | Remote control PC software for SY-8218 and SY-8219 including GP-IB converter SY-509, Bulkhead adaptor 182766-01 | |
|
SY-910 | Scanner connection cable for the IWATSU B-H Analyzer. Standard accessory for SY-320A and SY-321A | ||
|
SY-511 | Turntable for setting samples on SY-321A scanner mechanism. Max sample capacity: 41pcs | ||
|
SY-510 | Turntable for setting samples on SY-320A scanner mechanism. Max sample capacity: 20pcs | ||
|
SY-512 | Spare connection pin set for SY-320A / 321A | ||
|
|
783368-01 | GPIB-to-USB adapter for use with the IWATSU B-H Analyzer and SY-810 remote control software. This NI GPIB-USB-HS controller provides a high-speed USB connection between a PC and GPIB-equipped IWATSU instruments, enabling reliable instrument communication and remote operation. | |
|
|
SY-509 | GBIP-USB converter for the IWATSU B-H Analyzer. Included in IWATSU Remote control PC software for SY-8218 and SY-8219 | |
